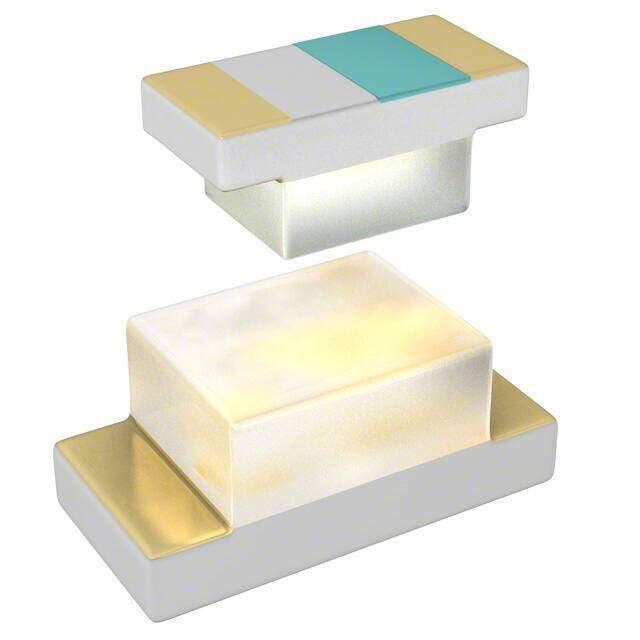

QTLP600CBTR
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 0603 SMD
PDF
/
Inventory: 8790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2003
Size / Dimension 1.60mm Lx0.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Blue
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 1.65mm
Depth 900μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Configuration Standard
Power Dissipation 100mW
Voltage - Forward (Vf) (Typ) 3.8V
Viewing Angle 100°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.80mm
Luminous Intensity 20 mcd
Lens Transparency Clear
Wavelength - Peak 430nm
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 465nm
Number of LEDs 2
Dimensions
Height 800μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
