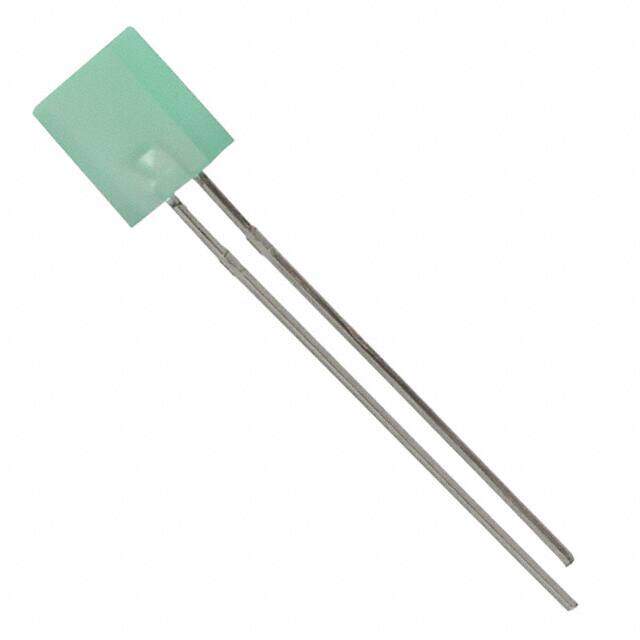

HLMP0504
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
Rectangle with Flat Top 1 SINGLE COLOR LED Green LED Indication Discrete 7.49mm 3V 20mA 135mW
PDF
/
Inventory: 1305
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Bulk
Published 2006
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Max Operating Temperature 100°C
Min Operating Temperature -50°C
Color Green
Additional Feature HIGH RELIABILITY
Subcategory Visible LEDs
Number of Functions 1
Depth 2.54mm
Number of Elements 1
Configuration Standard
Power Dissipation 135mW
Voltage - Forward (Vf) (Typ) 2.3V
Viewing Angle 100°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 7.24mmx2.42mm
Luminous Intensity 5 mcd
Lens Transparency Diffused
Wavelength - Peak 565nm
Reverse Voltage 5V
Forward Voltage-Max 3V
Dimensions
Height 8mm
Length 7.49mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
