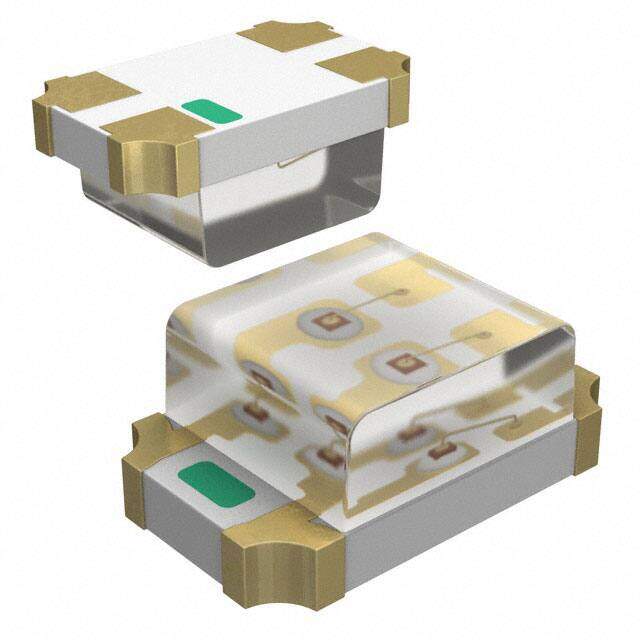

EAST1616RGBA4 image
Favorite
EAST1616RGBA4 image
Favorite
RoHS
RoHS RoHS compliant
Package 0606 (1616 Metric)
Category Optoelectronics / LED Indication - Discrete
Description Red/Green/Blue 100° 100/180/50 mcd Clear 2.4/3.8/3.8 V SMT Chip LED
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.33528
≥100 USD $0.192808
≥500 USD $0.150867
Inventory: 34374
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case 0606 (1616 Metric)

Technical

Published 2014
Size / Dimension 1.60mm Lx1.60mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Color Red, Green, Blue (RGB)
HTS Code 8541.40.20.00
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2.05V Red 3.25V Green 3.25V Blue
Viewing Angle 120°
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Flat Top
Lens Size 1.60mmx1.10mm
Millicandela Rating 100mcd Red, 180mcd Green, 50mcd Blue
Lens Transparency Clear
Wavelength - Peak 632nm Red 518nm Green 468nm Blue
Lens Color Colorless
Wavelength - Dominant 624nm Red 525nm Green 470nm Blue

Dimensions

Height (Max) 0.45mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
