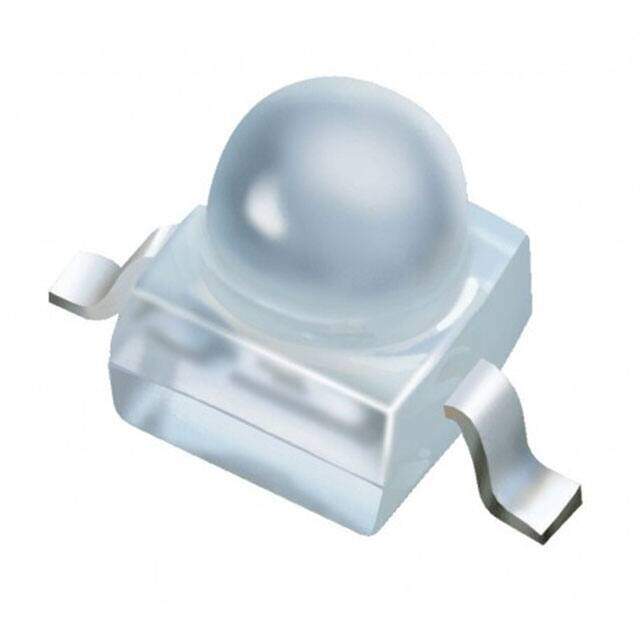

95-21USRD/S357/TR7
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Gull Wing
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color Red 639nm 2-Pin SMD T/R
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.32648
≥100 USD $0.18788
≥500 USD $0.147022
≥1000 USD $0.134772
Inventory: 1189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Size / Dimension 2.50mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Color Red
Packing Method TAPE AND REEL 7"
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 35°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Luminous Intensity 100.0 mcd
Millicandela Rating 100mcd
Lens Transparency Diffused
Wavelength - Peak 639nm
Forward Current-Max 0.025A
Overall Height 2.7mm
Wavelength - Dominant 631nm
Number of LEDs 1
T-code T-3/4
Dimensions
Height (Max) 2.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
