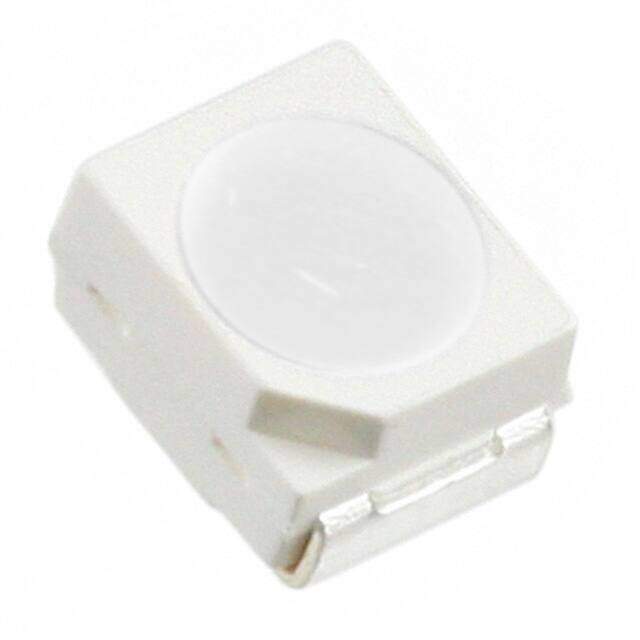

67-21/QK2C-B56702C4CB2/2T
RoHS
/
Package 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED COOL WHITE 6325K 2SMD
PDF
/
Inventory: 4061
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 2.1mm
Technical
Wavelength - Dominant 5650K ~ 7000K
Reverse Voltage 5V
Luminous Flux 6.8 lm
Lens Color Yellow
Lens Transparency Diffused
Illumination Color White
Millicandela Rating 2200mcd
Luminous Intensity 2.2 cd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.25V
Power Dissipation 110mW
Configuration Standard
Number of Elements 1
Depth 2.7mm
Terminal Pitch 3mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 110mW
Color White, Cool
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 3.20mm Lx2.80mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
