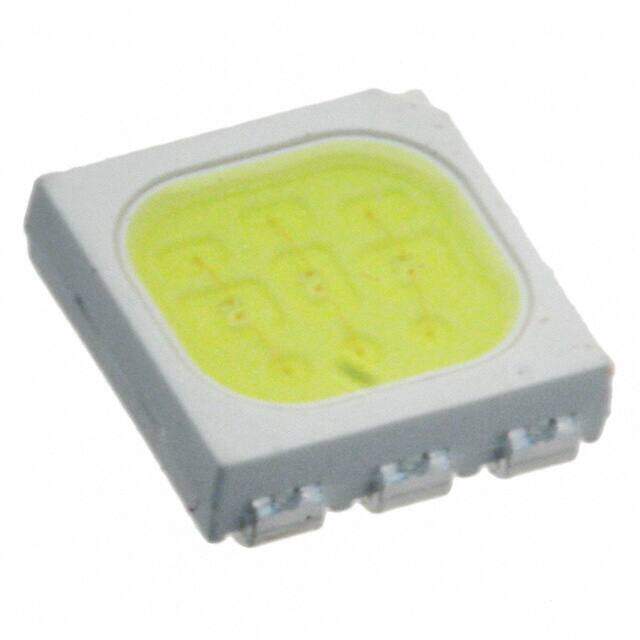

61-238/LK2C-B56706F4GB2/ET
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED COOL WHITE 6325K 6SMD
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.42328
≥100 USD $0.277288
Inventory: 59904
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, J-Lead
Number of Pins 6
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 5.00mm Lx5.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color White, Cool
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 4.7mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.25V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Current - Test 3 x 20mA
Lens Style Rectangle with Flat Top
Lens Size 4.36mmx3.96mm
Luminous Intensity 5.9 cd
Millicandela Rating 7100mcd
Illumination Color White
Lens Transparency Diffused
Lens Color Yellow
Luminous Flux 18.6 lm
Wavelength - Dominant 5650K ~ 7000K
Number of LEDs 1
Dimensions
Height 1.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
