334-15/X2C5-1MQA
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

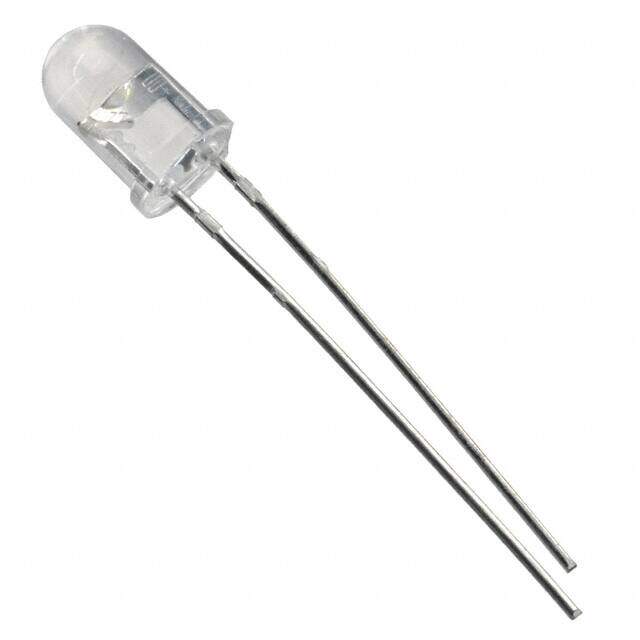

LED WHITE CLEAR 5MM ROUND T/H
PDF
/
Inventory: 9183
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 5.9mm
Height 8.9mm
Technical
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3150mcd
Luminous Intensity 3.15 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 50°
Voltage - Forward (Vf) (Typ) 3.2V
Power Dissipation 110mW
Configuration Standard
Number of Elements 1
Depth 5.9mm
Number of Functions 1
Packing Method TAPE AND REEL
Color White, Warm
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2009
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
