5989270107F
RoHS
/
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN DIFFUSED 1206 SMD
PDF
/
Inventory: 5250
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant

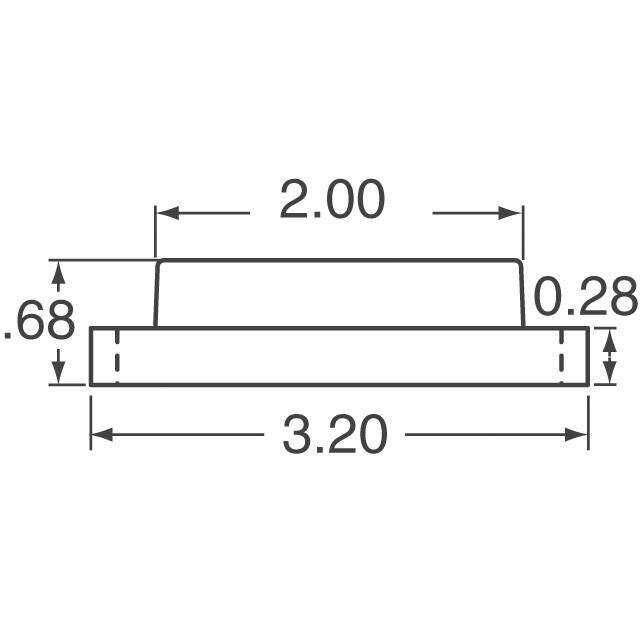

Dimensions
Height 700μm
Technical
Number of LEDs 1
Wavelength - Dominant 566nm
Wavelength 570 nm
Reverse Voltage 5V
Lens Color White
Lens Transparency Diffused
Luminous Intensity 20 mcd
Lens Size 2.00mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Case Code (Imperial) 1206
Case Code (Metric) 3216
Terminal Pitch 3.5mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Color Green
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e4
Size / Dimension 3.20mm Lx1.60mm W
Series 598
Published 2007
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
