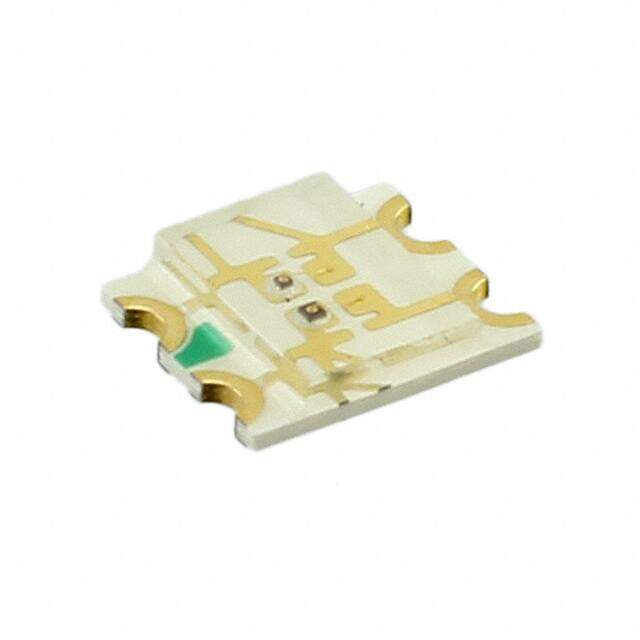

5988610207F
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
DIALIGHT 5988610207F LED, Green, Red, SMD, 2mm x 2.7mm, 140 , Rectangular, R 20mA, G 20mA
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.28776
≥100 USD $0.165616
≥500 USD $0.129589
Inventory: 1450
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2007
Series 598
Size / Dimension 3.20mm Lx2.70mm W
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Terminal Finish Nickel/Gold (Ni/Au)
Color Green, Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 3.2mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2V Green 2V Red
Viewing Angle 140°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 2.00mmx1.30mm
Luminous Intensity 60.0/40.0 mcd
Millicandela Rating 40mcd Green, 60mcd Red
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.02A
Forward Voltage-Max 2.4V
Overall Height 0.7mm
Wavelength - Dominant 568nm Green 635nm Red
Reverse Voltage-Max 5V
Dimensions
Height (Max) 0.70mm
Compliance
RoHS Status ROHS3 Compliant
