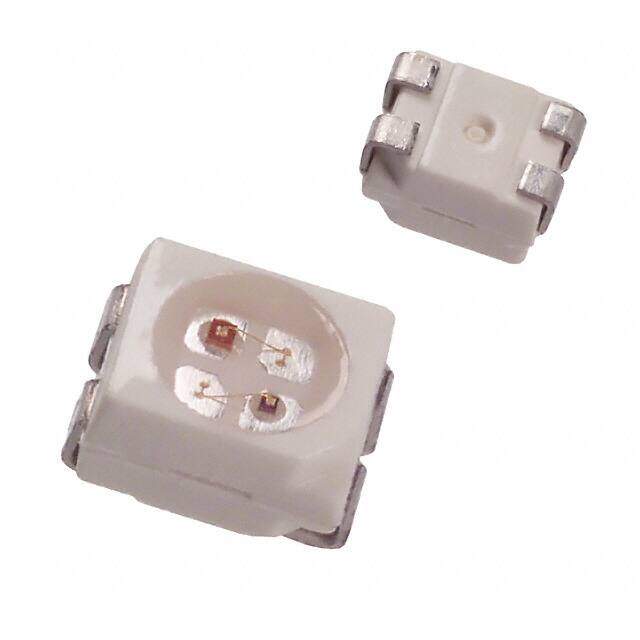

5977731207F
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED RED/YELLOW CLEAR 4PLCC SMD
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $0.7084
≥100 USD $0.524568
≥500 USD $0.481994
≥1000 USD $0.396942
Inventory: 1148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-PLCC
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Published 2002
Series microLED?
Size / Dimension 3.20mm Lx2.80mm W
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 4
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Color Red, Yellow
Additional Feature SUPPORTS INFRARED
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 3mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2V Red 2V Yellow
Viewing Angle 120°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 10mA Red 10mA Yellow
Lens Style Round with Flat Top
Lens Size 2.39mm Dia
Luminous Intensity 112.0/140.0 mcd
Millicandela Rating 7.3mcd Red, 6.8mcd Yellow
Lens Transparency Clear
Wavelength - Peak 635nm Red 586nm Yellow
Lens Color Colorless
Forward Current-Max 0.03A
Forward Voltage-Max 2.6V
Overall Height 1.805mm
Wavelength - Dominant 633nm Red 587nm Yellow
T-code T-1
Reverse Voltage-Max 5V
Dimensions
Height (Max) 2.10mm
Compliance
RoHS Status ROHS3 Compliant
