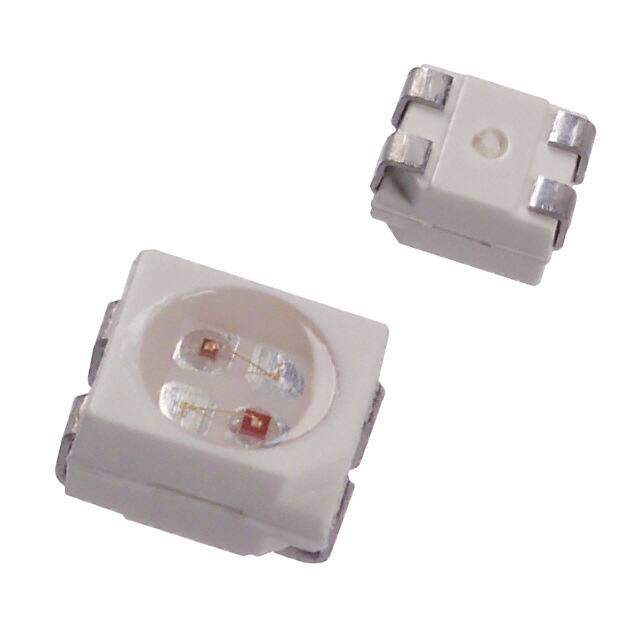

5977721202F
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/YELLOW CLEAR 4PLCC SMD
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.1792
≥1 USD $1.1792
≥10 USD $0.74888
≥100 USD $0.554136
≥500 USD $0.509186
≥1000 USD $0.419338
≥3000 USD $0.398367
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, J-Lead
Surface Mount YES
Technical
Packaging Strip
Published 2002
Series microLED?
Size / Dimension 3.10mm Lx2.80mm W
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 4
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Color Green, Yellow
Additional Feature SUPPORTS INFRARED
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 3mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Green 1.8V Yellow
Viewing Angle 120°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Yellow
Lens Style Round with Flat Top
Lens Size 2.39mm Dia
Luminous Intensity 16.0 mcd
Millicandela Rating 16mcd Green, 16mcd Yellow
Lens Transparency Clear
Wavelength - Peak 565nm Green 585nm Yellow
Lens Color Colorless
Forward Current-Max 0.03A
Forward Voltage-Max 2.6V
Overall Height 1.905mm
Wavelength - Dominant 570nm Green 590nm Yellow
Reverse Voltage-Max 5V
Dimensions
Height (Max) 2.05mm
Compliance
RoHS Status ROHS3 Compliant
