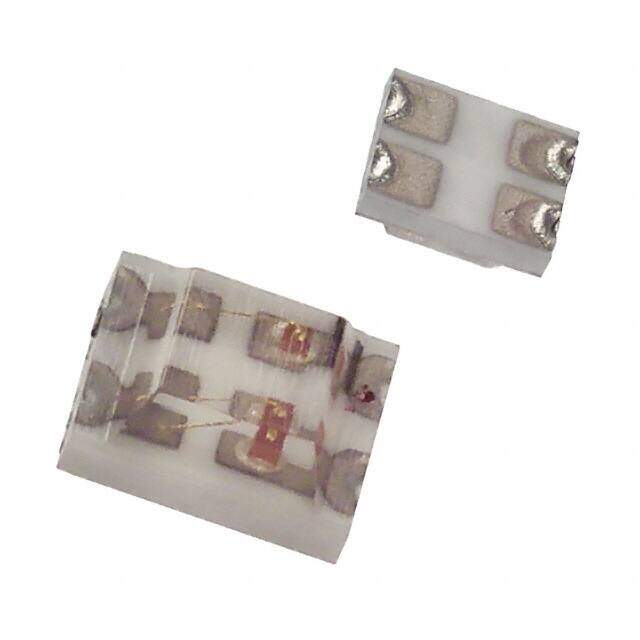

5977721107F
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/YELLOW CLEAR 4SMD
PDF
/
Inventory: 3724
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 1.47mm
Technical
Wavelength - Dominant 565nm Green 585nm Yellow
Overall Height 1.016mm
Forward Voltage-Max 2.6V
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 565nm Green 585nm Yellow
Lens Transparency Clear
Millicandela Rating 12mcd Green, 8mcd Yellow
Luminous Intensity 6.0/12.0 mcd
Lens Size 1.65mmx1.27mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Yellow
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 170°
Voltage - Forward (Vf) (Typ) 2V Green 2.1V Yellow
Configuration Independent
Operating Temperature (Min) -30°C
Operating Temperature (Max) 75°C
Reach Compliance Code compliant
Terminal Pitch 2.99mm
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Green, Yellow
Terminal Finish Silver/Platinum (Ag/Pt)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 3.00mm Lx2.54mm W
Series microLED?
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
