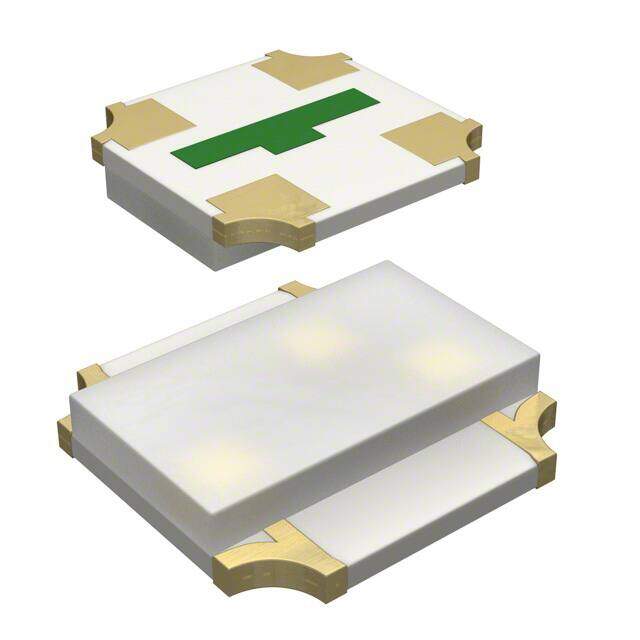

5977707507F
RoHS
RoHS compliant
RoHS compliantPackage 0404 (1010 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/RED DIFFUSED 0404 SMD
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.53592
≥100 USD $0.351296
≥500 USD $0.277306
≥1000 USD $0.258817
Inventory: 11327
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0404 (1010 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Cut Tape (CT)
Published 2012
Series 597
Size / Dimension 1.00mm Lx1.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Green, Red
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 0.8mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Red
Viewing Angle 128°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 1.00mmx0.60mm
Luminous Intensity 52.0/21.0 mcd
Millicandela Rating 21mcd Green, 52mcd Red
Lens Transparency Diffused
Lens Color White
Forward Current-Max 0.02A
Overall Height 0.2mm
Wavelength - Dominant 572nm Green 620nm Red
Dimensions
Height (Max) 0.25mm
Compliance
RoHS Status ROHS3 Compliant
