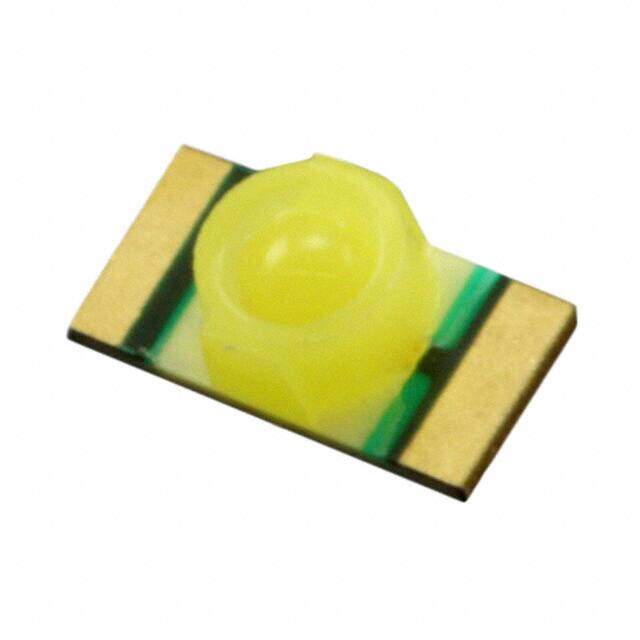

5976901607F
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED WHITE 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.4972
≥100 USD $0.325952
≥500 USD $0.257312
Inventory: 1716
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.10mm
Technical
Reverse Voltage-Max 5V
Overall Height 1.1mm
Forward Voltage-Max 3.15V
Forward Current-Max 0.02A
Millicandela Rating 70mcd
Lens Size 1.60mm Dia
Lens Style Round with Flat Top
Current - Test 5mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 3V
Configuration Standard
Operating Temperature (Min) -55°C
Operating Temperature (Max) 85°C
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color White
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.20mm Lx1.60mm W
Series 597
Published 2008
Packaging Digi-Reel?
Physical
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount, Bottom Entry
Supply Chain
Factory Lead Time 70 Weeks
