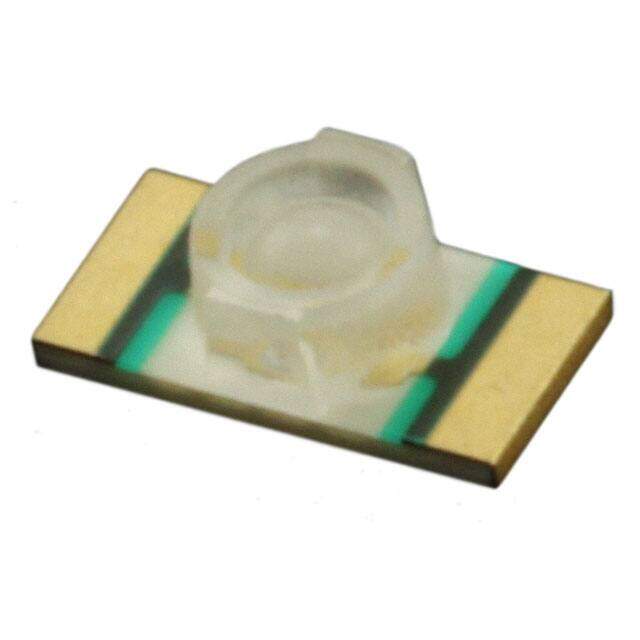

5976001602F

Dialight
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.3552
≥1 USD $1.3552
≥10 USD $0.85536
≥100 USD $0.633072
≥500 USD $0.581715
≥1000 USD $0.479063
≥3000 USD $0.45511
Inventory: 227
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Surface Mount, Bottom Entry
Package / Case 1206 (3216 Metric)

Technical

Packaging Strip
Published 2008
Series 597
Size / Dimension 3.20mm Lx1.60mm W
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Operating Temperature (Max) 85°C
Operating Temperature (Min) -55°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 70°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Flat Top
Lens Size 1.60mm Dia
Millicandela Rating 149mcd
Lens Transparency Clear
Wavelength - Peak 639nm
Lens Color Colorless
Forward Current-Max 0.03A
Forward Voltage-Max 2.4V
Overall Height 1.1mm
Wavelength - Dominant 631nm
Reverse Voltage-Max 5V

Dimensions

Height (Max) 1.10mm

Compliance

RoHS Status ROHS3 Compliant
