5975203402F
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description

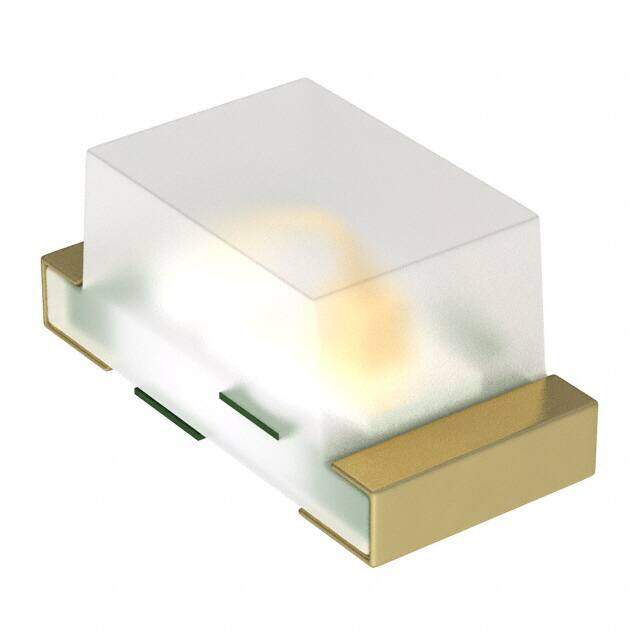

LED ORANGE DIFFUSED 0603 SMD
PDF
/
Inventory: 2950
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Strip
Published 2008
Series 597
Size / Dimension 1.60mm Lx0.80mm W
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Terminal Finish Copper/Nickel/Gold (Cu/Ni/Au)
Color Orange
Additional Feature SUPPORTS INFRARED
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 1.6mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -30°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 152°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.10mmx0.80mm
Luminous Intensity 3.4 mcd
Millicandela Rating 2mcd
Lens Transparency Diffused
Wavelength - Peak 605nm
Lens Color White
Forward Current-Max 0.025A
Forward Voltage-Max 2.8V
Overall Height 0.7mm
Wavelength - Dominant 606nm
Dimensions
Height (Max) 0.70mm
Compliance
RoHS Status ROHS3 Compliant
