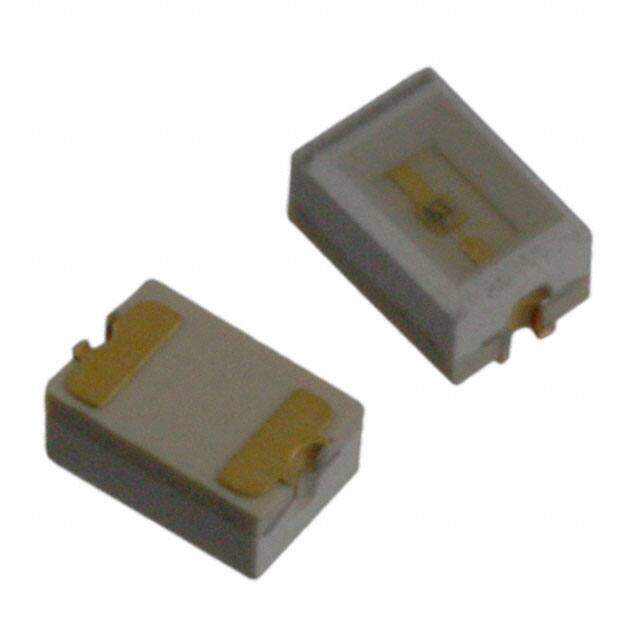

5973602507F image
Favorite
5973602507F image
Favorite

5973602507F

Dialight
RoHS
RoHS RoHS compliant
Package 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED BLUE CLEAR 1208 SMD
PDF
/
Buying Options
Total Price: USD $3.11
Unit Price: USD $3.1064
≥1 USD $3.1064
≥10 USD $2.19648
≥100 USD $1.799336
≥500 USD $1.516874
≥1000 USD $1.391333
Inventory: 1183
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 1.30mm

Technical

Wavelength - Dominant 470nm
Overall Height 1.3mm
Forward Current-Max 0.02A
Lens Color Colorless
Wavelength - Peak 468nm
Lens Transparency Clear
Millicandela Rating 100mcd
Luminous Intensity 100.0 mcd
Lens Size 2.30mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.95mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Blue
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.00mm Lx2.00mm W
Series 597
Published 2010
Packaging Tape & Reel (TR)

Physical

Shape RECTANGULAR
Surface Mount YES
Package / Case 1208 (3020 Metric)
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
