5973311407NF
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description

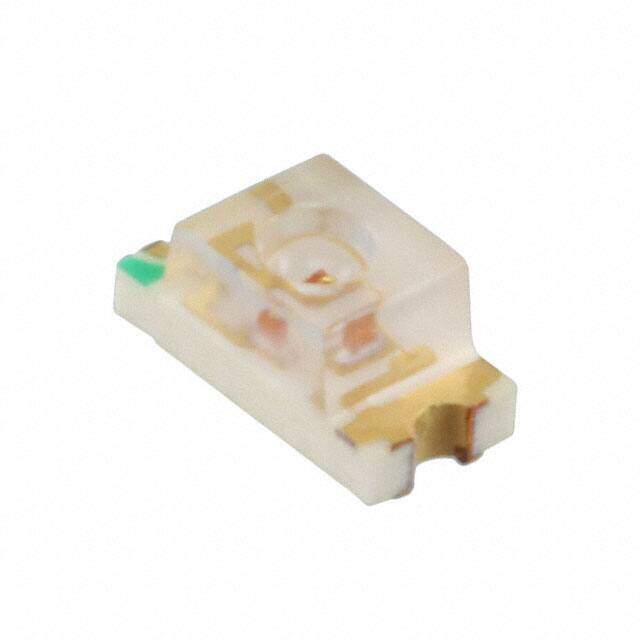

LED GREEN CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.45848
≥100 USD $0.300608
≥500 USD $0.23731
Inventory: 1448
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.90mm
Technical
Wavelength - Dominant 567nm
Overall Height 1.5mm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 560nm
Lens Transparency Clear
Millicandela Rating 30mcd
Luminous Intensity 12.0 mcd
Lens Style Round with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.955mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Green
Terminal Finish Gold (Au)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e4
Size / Dimension 3.00mm Lx1.50mm W
Series 597
Published 2016
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
