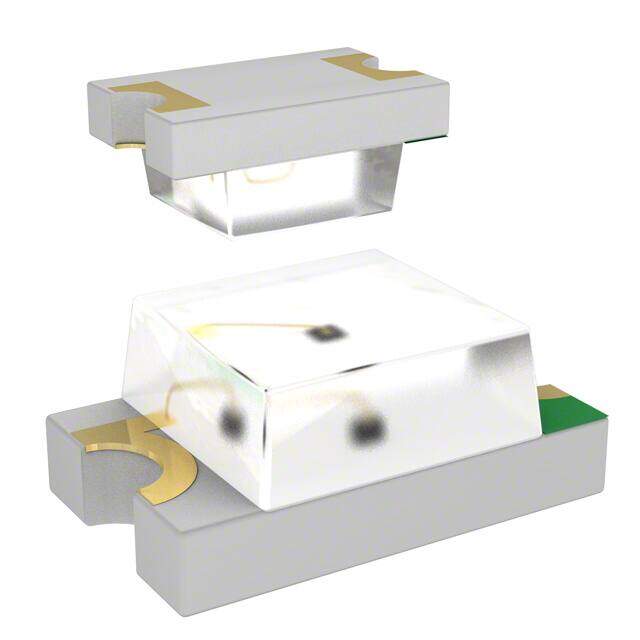

5973222407F
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 0805 SMD
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.432987
≥1 USD $1.432987
≥10 USD $1.351873
≥100 USD $1.275358
≥500 USD $1.203162
≥1000 USD $1.135059
Inventory: 1292
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.80mm
Technical
Overall Height 0.79mm
Forward Voltage-Max 2.4V
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 594nm
Lens Transparency Clear
Millicandela Rating 65mcd
Luminous Intensity 65.0 mcd
Lens Size 1.20mmx1.25mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 156°
Voltage - Forward (Vf) (Typ) 1.9V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.25mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature SUPPORTS INFRARED
Color Yellow
Terminal Finish Copper/Nickel/Gold (Cu/Ni/Au)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 2.00mm Lx1.25mm W
Series microLED?
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
