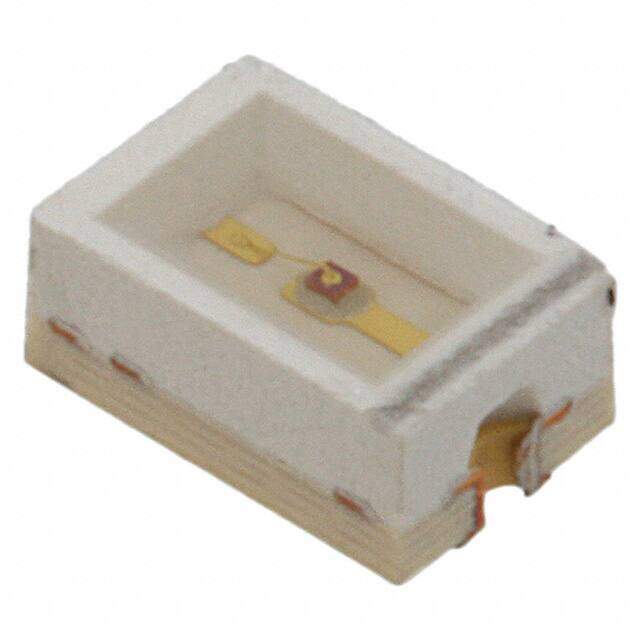

5973211507F
RoHS
RoHS compliant
RoHS compliantPackage 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE CLEAR 1208 SMD
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.3784
≥100 USD $0.25036
≥500 USD $0.193274
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.50mm
Technical
Wavelength - Dominant 612nm
Overall Height 1.3mm
Forward Voltage-Max 2.8V
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 610nm
Lens Transparency Clear
Millicandela Rating 10mcd
Luminous Intensity 10.0 mcd
Lens Size 2.30mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.9mm
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature SUPPORTS INFRARED
Color Orange
Terminal Finish Nickel/Gold (Ni/Au)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 3.00mm Lx2.00mm W
Series 597
Published 2005
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 1208 (3020 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
