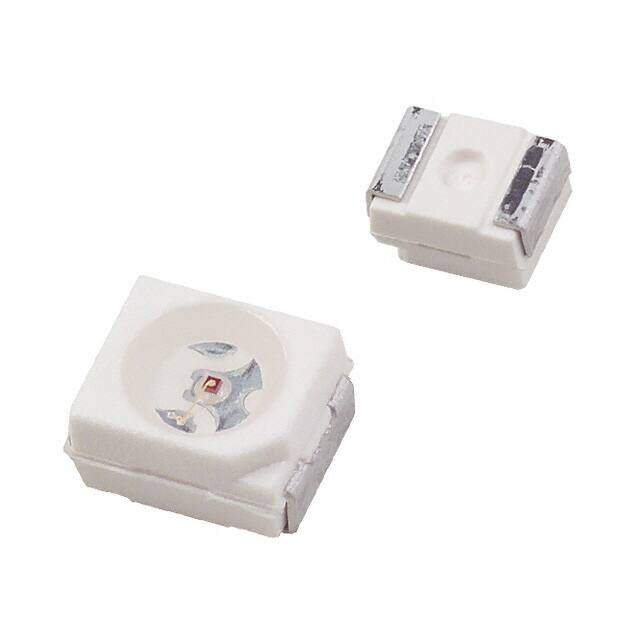

5973121202F
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 2PLCC SMD
PDF
/
Inventory: 3685
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-PLCC
Surface Mount YES
Technical
Packaging Strip
Published 2009
Series 597
Size / Dimension 3.20mm Lx2.80mm W
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 2
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Color Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.794mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.75V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 10mA
Lens Style Round with Flat Top
Lens Size 2.39mm Dia
Luminous Intensity 35.5 mcd
Millicandela Rating 35.5mcd
Lens Transparency Clear
Wavelength - Peak 660nm
Lens Color Colorless
Forward Current-Max 0.03A
Forward Voltage-Max 2.6V
Overall Height 1.905mm
Wavelength - Dominant 645nm
Dimensions
Height (Max) 2.11mm
Compliance
RoHS Status ROHS3 Compliant
