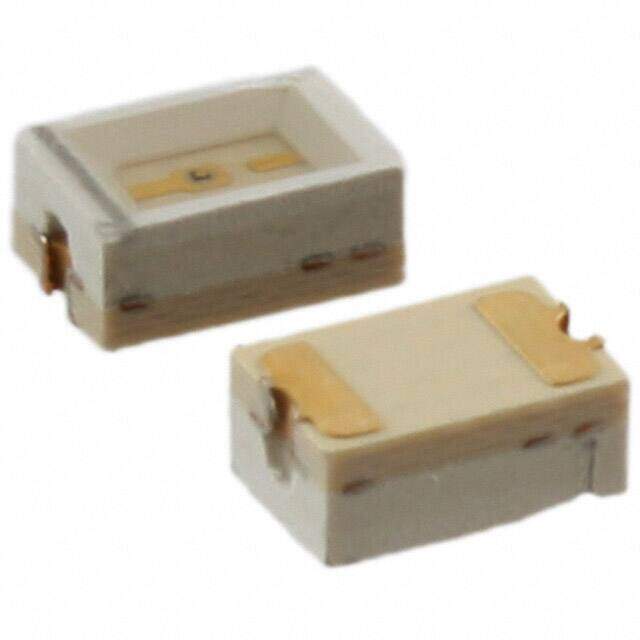

5973032507F
RoHS
RoHS compliant
RoHS compliantPackage 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 1208 SMD
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.4972
≥100 USD $0.325952
≥500 USD $0.257312
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1208 (3020 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2010
Series 597
Size / Dimension 3.00mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Red
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 2.95mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 110°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 2.30mmx1.60mm
Luminous Intensity 100.0 mcd
Millicandela Rating 100mcd
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.02A
Overall Height 1.3mm
Wavelength - Dominant 620nm
Peak Wavelength 620 nm
Dimensions
Height (Max) 1.30mm
Compliance
RoHS Status ROHS3 Compliant
