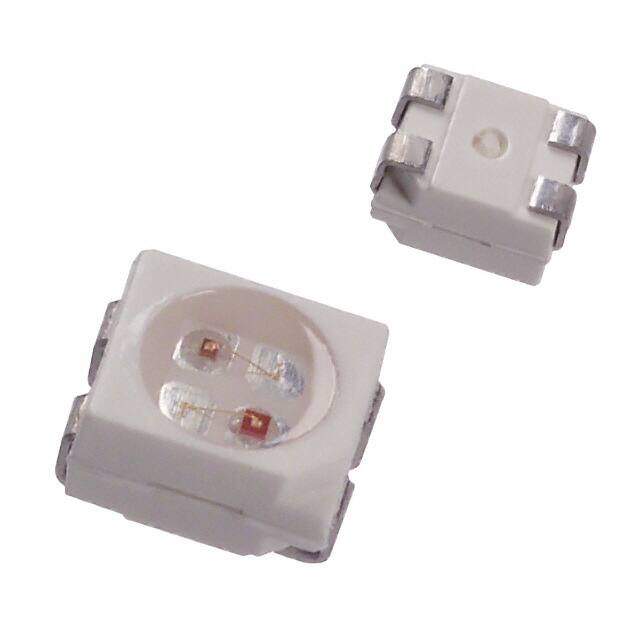

5973029207F
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED RED 4PLCC SMD
PDF
/
Inventory: 3102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-PLCC
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Published 2013
Series 597
Size / Dimension 3.20mm Lx2.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 4
Color Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL 7"
Number of Functions 1
Operating Temperature (Max) 110°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.15V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 50mA
Lens Style Round with Flat Top
Luminous Intensity 1800.0 mcd
Millicandela Rating 1800mcd
Wavelength - Peak 634nm
Forward Current-Max 0.07A
Forward Voltage-Max 2.5V
Overall Height 1.805mm
Wavelength - Dominant 625nm
Dimensions
Height (Max) 2.10mm
Compliance
RoHS Status ROHS3 Compliant
