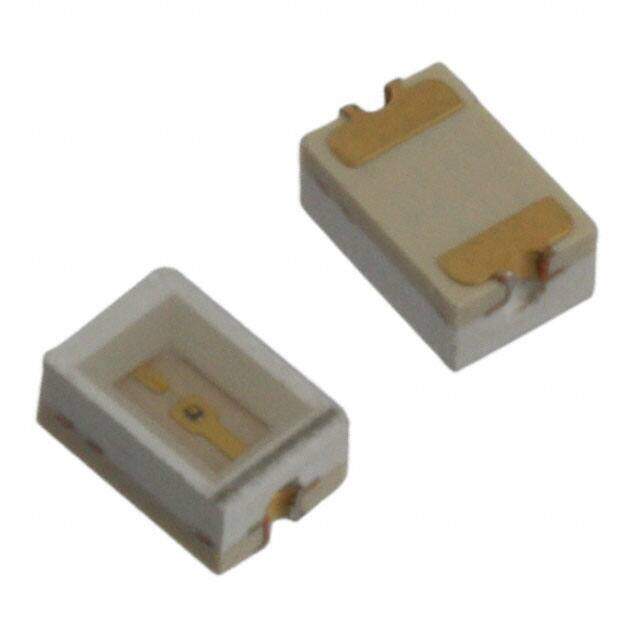

5973002507F
RoHS
RoHS compliant
RoHS compliantPackage 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 1208 SMD
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.4972
≥100 USD $0.325952
≥500 USD $0.257312
Inventory: 1182
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.30mm
Technical
Peak Wavelength 630 nm
Wavelength - Dominant 630nm
Overall Height 1.3mm
Forward Current-Max 0.02A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 63mcd
Luminous Intensity 63.0 mcd
Lens Size 2.30mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.95mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.00mm Lx2.00mm W
Series 597
Published 2010
Packaging Digi-Reel?
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 1208 (3020 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
