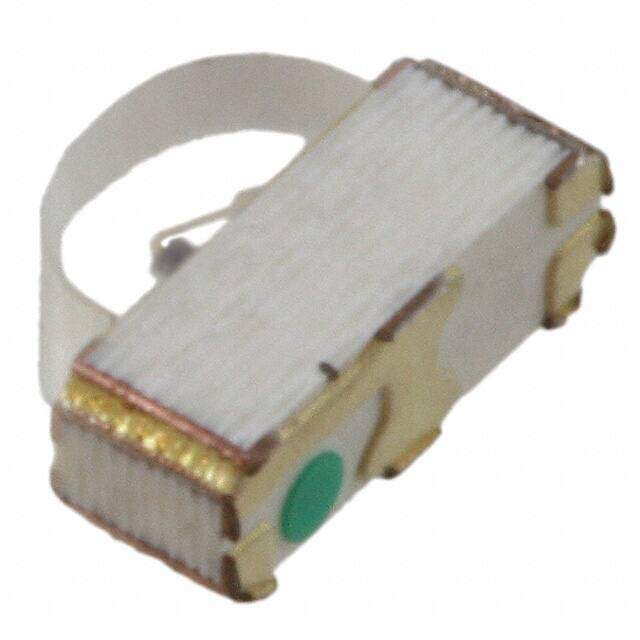

5972751607F
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.57112
≥100 USD $0.422576
≥500 USD $0.388309
≥1000 USD $0.319792
Inventory: 1266
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.00mm
Technical
Wavelength - Dominant 571nm Green 631nm Red
Overall Height 2mm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 574nm Green 639nm Red
Lens Transparency Clear
Millicandela Rating 35mcd Green, 45mcd Red
Luminous Intensity 35.0 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 2V Green 2V Red
Configuration Common Anode
Operating Temperature (Min) -55°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Green, Red
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.00mm W
Series 597
Published 2006
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Supply Chain
Factory Lead Time 4 Weeks
