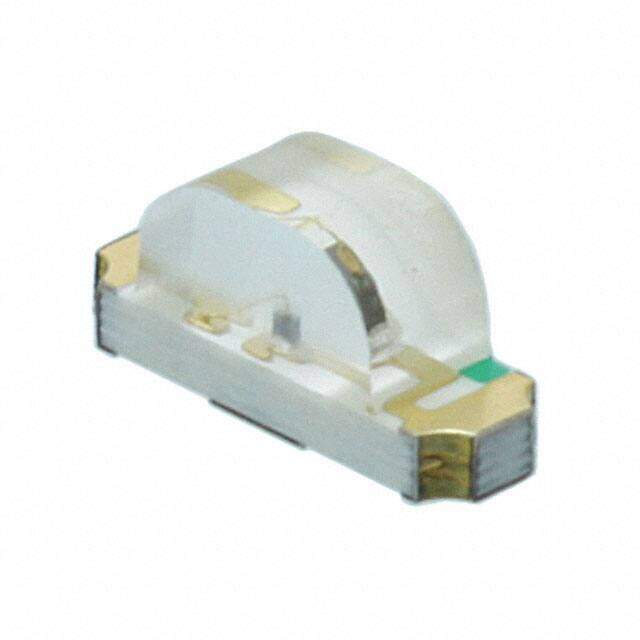

5972723607F
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/YELLOW CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.7688
≥1 USD $1.7688
≥10 USD $1.18184
≥100 USD $0.909304
≥500 USD $0.821955
≥1000 USD $0.706376
Inventory: 1719
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2006
Series 597
Size / Dimension 3.00mm Lx2.00mm W
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 3
Terminal Finish Nickel/Gold (Ni/Au)
Color Green, Yellow
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL 7"
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -55°C
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Green 2V Yellow
Viewing Angle 130°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA Green 20mA Yellow
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Luminous Intensity 30.0 mcd
Millicandela Rating 35mcd Green, 30mcd Yellow
Lens Transparency Clear
Wavelength - Peak 574nm Green 591nm Yellow
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 2mm
Wavelength - Dominant 571nm Green 589nm Yellow
Dimensions
Height (Max) 1.00mm
Compliance
RoHS Status ROHS3 Compliant
