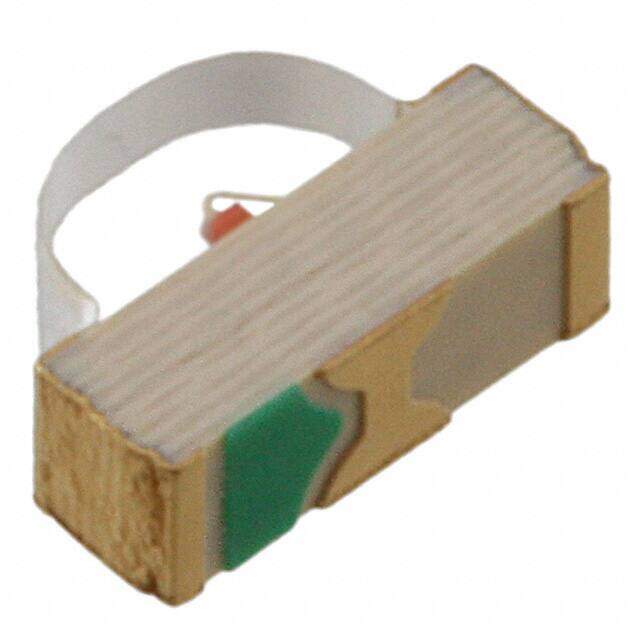

5972401407F
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 1208 SMD R/A
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.48488
≥100 USD $0.317504
≥500 USD $0.250642
Inventory: 2372
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.00mm
Technical
Overall Height 2mm
Forward Voltage-Max 2.8V
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 580nm
Lens Transparency Clear
Millicandela Rating 3mcd
Luminous Intensity 3.0 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.75mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature SUPPORTS INFRARED
Color Yellow
Terminal Finish Copper/Nickel/Gold (Cu/Ni/Au)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 3.00mm Lx2.00mm W
Series microLED?
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
