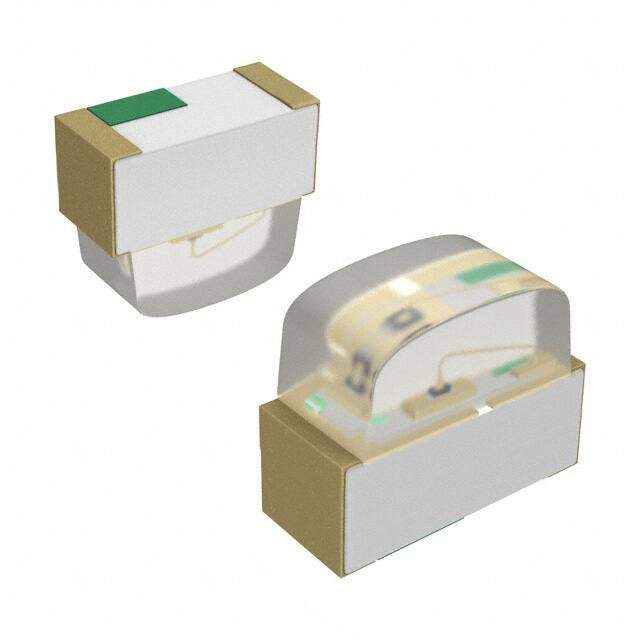

5972203502F
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE CLEAR 0605 SMD R/A
PDF
/
Inventory: 5116
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.55mm
Technical
Wavelength - Dominant 605nm
Overall Height 0.55mm
Forward Current-Max 0.02A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Luminous Intensity 100.0 mcd
Lens Size 1.20mmx0.55mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 135°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
HTS Code 8541.40.20.00
Color Orange
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.60mm Lx1.15mm W
Series 597
Published 2010
Packaging Strip
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
