5219918
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

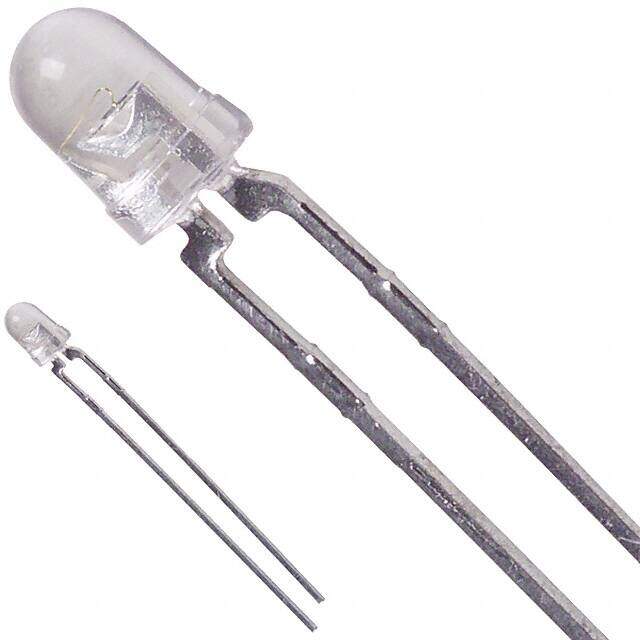

LED BLUE CLEAR 3MM T/H
PDF
/
Inventory: 5711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Technical
Packaging Bulk
Published 2003
Series 521
JESD-609 Code e1
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Blue
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.5V
Viewing Angle 50°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 2.92mm Dia
Luminous Intensity 520.0 mcd
Millicandela Rating 460mcd
Lens Transparency Clear
Wavelength - Peak 464nm
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 4.45mm
Wavelength - Dominant 470nm
T-code T-1
Dimensions
Height (Max) 6.35mm
Compliance
RoHS Status Non-RoHS Compliant
