5219831
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

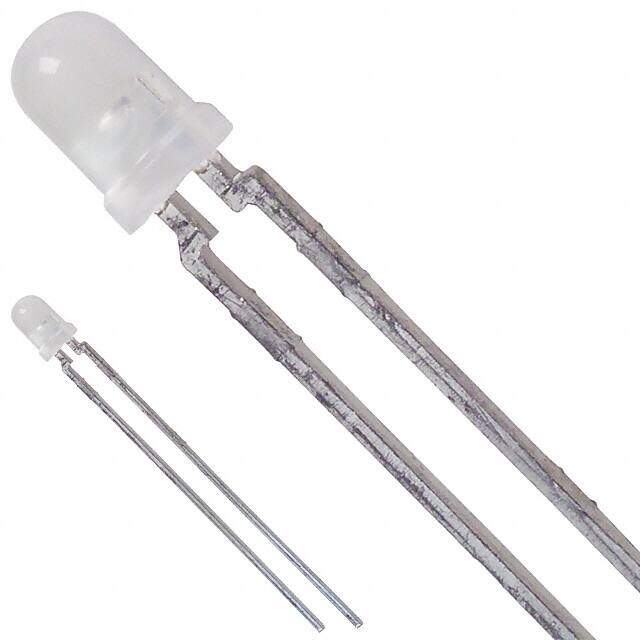

LED BLUE DIFFUSED 3MM T/H
PDF
/
Inventory: 5590
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Length 3.4mm
Height 4.8mm
Diameter 2.8mm
Technical
Dominant Wavelength 465 nm
T-code T-1
Forward Voltage-Max 4.2V
Reverse Voltage 3V
Lens Color White
Wavelength - Peak 428nm
Lens Transparency Diffused
Millicandela Rating 13.15mcd
Luminous Intensity 12 mcd
Lens Size 2.80mm Dia
Lens Style Round with Domed Top
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 3.5V
Power Dissipation 100mW
Configuration Standard
Depth 3.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Series 521
Published 2000
Packaging Bulk
Physical
Number of Pins 1
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
