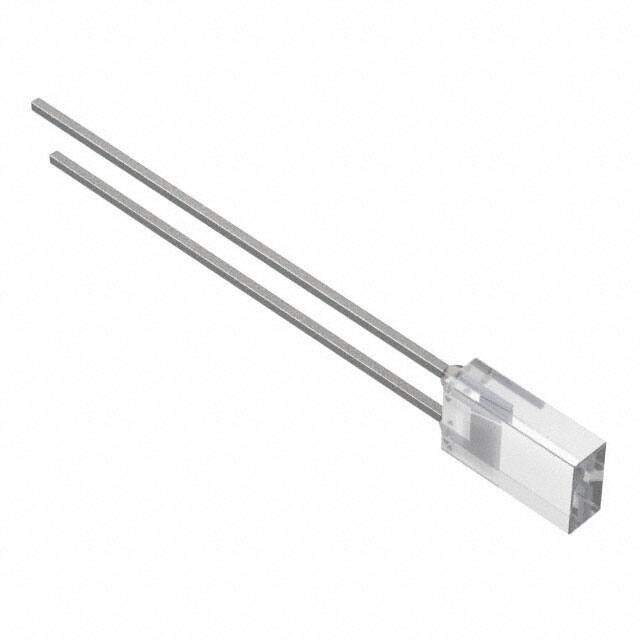

5219743F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED DIFF RECT 2X4MM T/H
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.729676
≥1 USD $0.729676
≥10 USD $0.688375
≥100 USD $0.649408
≥500 USD $0.612647
≥1000 USD $0.577972
Inventory: 1218
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 7.01mm
Technical
Luminous Intensity-Min 140 cd
Wavelength - Dominant 569nm Green 621nm Red
Overall Height 7.01mm
Forward Voltage-Max 2.8V
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 630nm Red
Lens Transparency Diffused
Millicandela Rating 5.6mcd Green, 5.6mcd Red
Luminous Intensity 5.6/5.6 mcd
Lens Size 3.99mmx2.03mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 2.1V Green 2V Red
Configuration Bidirectional
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Green, Red
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 521
Published 2009
Packaging Bulk
Physical
Shape RECTANGULAR
Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case Radial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
