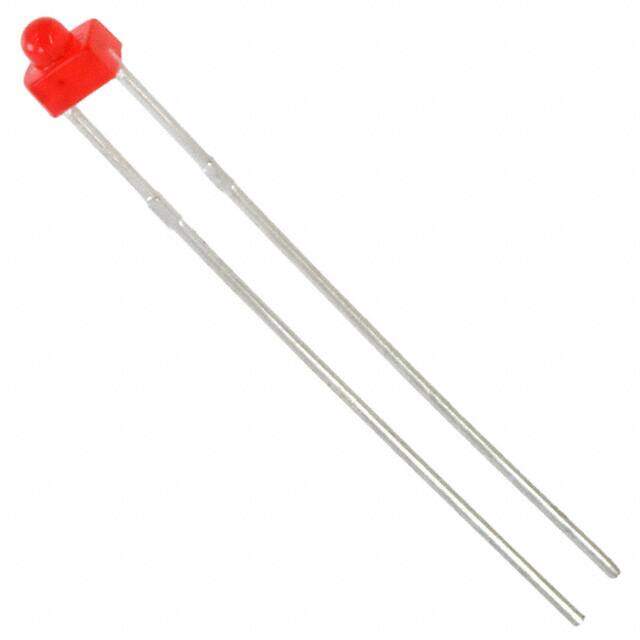

5219630F

Dialight
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED DIFFUSED 2MM T/H
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.4356
≥100 USD $0.285384
≥500 USD $0.225315
≥1000 USD $0.202778
≥3000 USD $0.199778
Inventory: 2831
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 3.35mm

Technical

Luminous Intensity-Min 76 cd
T-code T-3/4
Overall Height 3.099mm
Forward Voltage-Max 2.8V
Forward Current-Max 0.03A
Wavelength - Peak 627nm
Lens Transparency Diffused
Millicandela Rating 15mcd
Luminous Intensity 15.0 mcd
Lens Size 2.00mm Dia
Lens Style Round with Domed Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Red
Terminal Finish Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Series 521
Published 2005
Packaging Bulk

Physical

Surface Mount NO
Package / Case Radial
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
