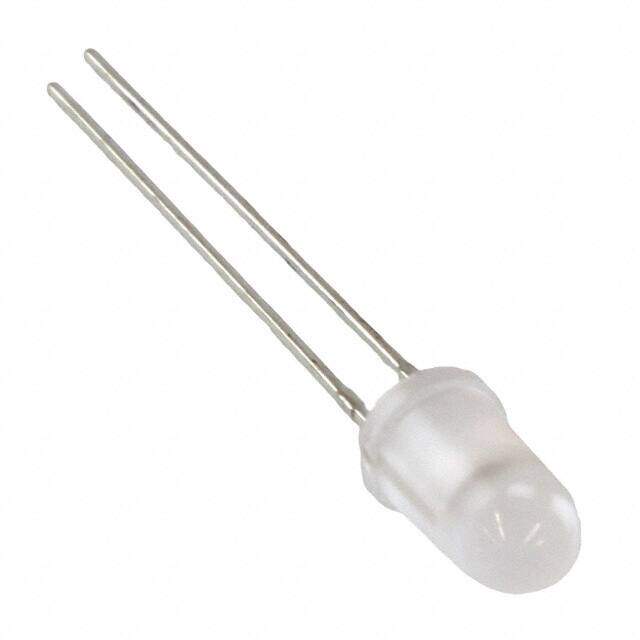

5219462F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED DIFFUSED T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.7336
≥1 USD $1.7336
≥10 USD $1.09736
≥100 USD $0.81224
≥500 USD $0.614698
≥1000 USD $0.570786
≥3000 USD $0.557612
Inventory: 3138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Technical
Packaging Bulk
Published 2007
Series 521
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Color Green, Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration Bidirectional
Voltage - Forward (Vf) (Typ) 2.1V Green 1.8V Red
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Luminous Intensity 90.0/40.0 mcd
Millicandela Rating 40mcd Green, 90mcd Red
Lens Transparency Diffused
Wavelength - Peak 565nm Green 660nm Red
Lens Color White
Forward Current-Max 0.04A
Forward Voltage-Max 1.8V
Overall Height 8.636mm
T-code T-1 3/4
Dimensions
Height (Max) 9.14mm
Compliance
RoHS Status ROHS3 Compliant
