5219432F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

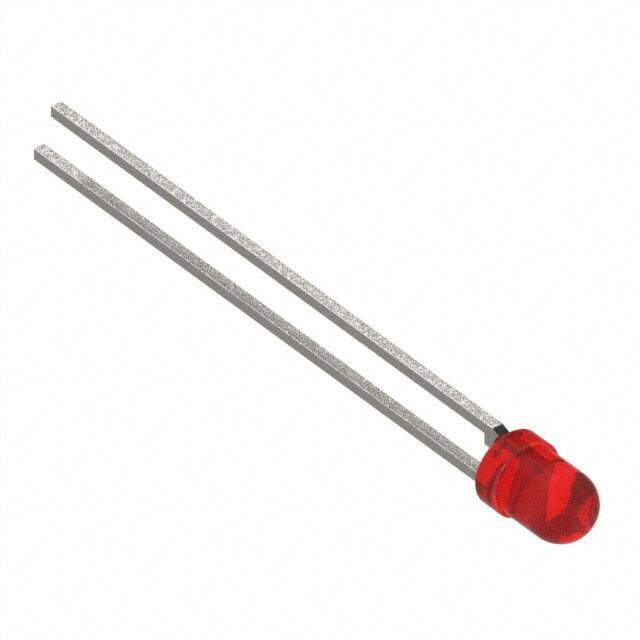

LED RED CLEAR 3MM T/H
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.334916
≥1 USD $0.334916
≥10 USD $0.315961
≥100 USD $0.298076
≥500 USD $0.281206
≥1000 USD $0.265287
Inventory: 1527
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 5.89mm
Technical
Peak Wavelength 635 nm
T-code T-1
Overall Height 4.44mm
Forward Voltage-Max 3V
Forward Current-Max 0.03A
Lens Transparency Clear
Millicandela Rating 29mcd
Luminous Intensity 29.0 mcd
Lens Size 2.90mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 45 deg
Configuration Standard
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Red
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 521
Published 2009
Packaging Bulk
Physical
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
