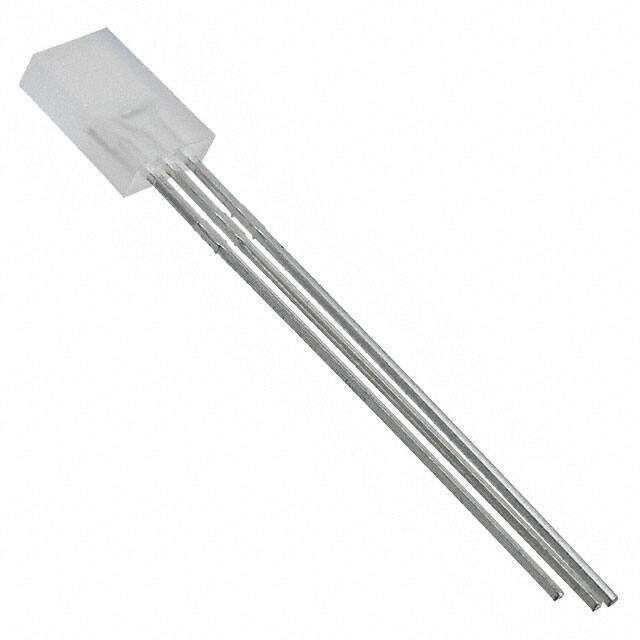

5219406F
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED DIFF RECT 2X5MM T/H
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.5752
≥1 USD $1.5752
≥10 USD $0.99792
≥100 USD $0.73832
≥500 USD $0.678427
≥1000 USD $0.558703
≥3000 USD $0.530763
Inventory: 1781
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Surface Mount NO
Mounting Feature RADIAL MOUNT
Shape RECTANGULAR
Technical
Packaging Bulk
Published 2002
Series 521
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Green, Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 1.27mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -20°C
Configuration COMMON CATHODE, 2 ELEMENTS
Viewing Angle 100 deg
Optoelectronic Device Type DUAL COLOR LED
Current - Test 10mA Green 10mA Red
Lens Style Rectangle with Flat Top
Lens Size 5.00mmx2.00mm
Luminous Intensity 3.5/4.0 mcd
Millicandela Rating 4mcd Green, 3.5mcd Red
Lens Transparency Diffused
Lens Color White
Forward Current-Max 0.025A
Forward Voltage-Max 2.5V
Overall Height 8.001mm
Peak Wavelength 635/565 nm
Luminous Intensity-Min 100 cd
Dimensions
Height (Max) 8.00mm
Compliance
RoHS Status ROHS3 Compliant
