5219251F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

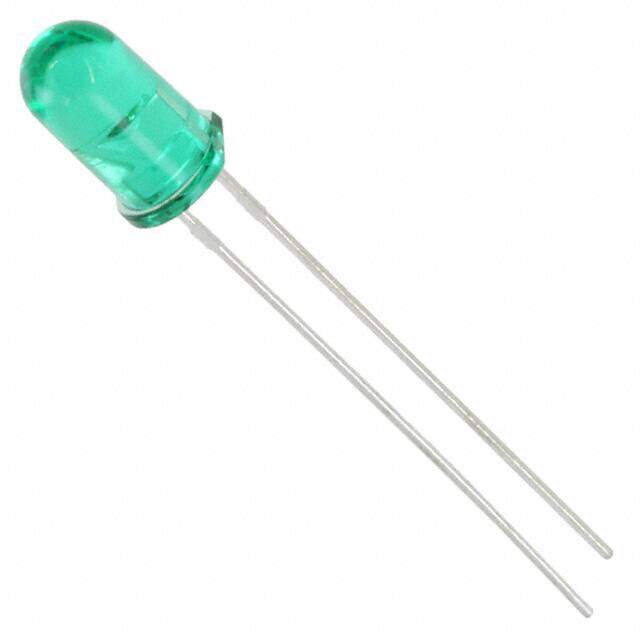

LED GREEN CLEAR 5MM T/H
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.694471
≥1 USD $0.694471
≥10 USD $0.655155
≥100 USD $0.618077
≥500 USD $0.583091
≥1000 USD $0.550087
Inventory: 1137
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 521
Published 2009
Packaging Bulk
T-code T-1 3/4
Overall Height 9.57mm
Forward Voltage-Max 3V
Forward Current-Max 0.03A
Wavelength - Peak 565nm
Lens Transparency Clear
Millicandela Rating 70mcd
Luminous Intensity 70.0 mcd
Lens Size 4.83mm Dia
Lens Style Round with Domed Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 24°
Voltage - Forward (Vf) (Typ) 2.65V
Configuration Standard
Operating Temperature (Min) -20°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Green
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 2
Physical
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 9.18mm
