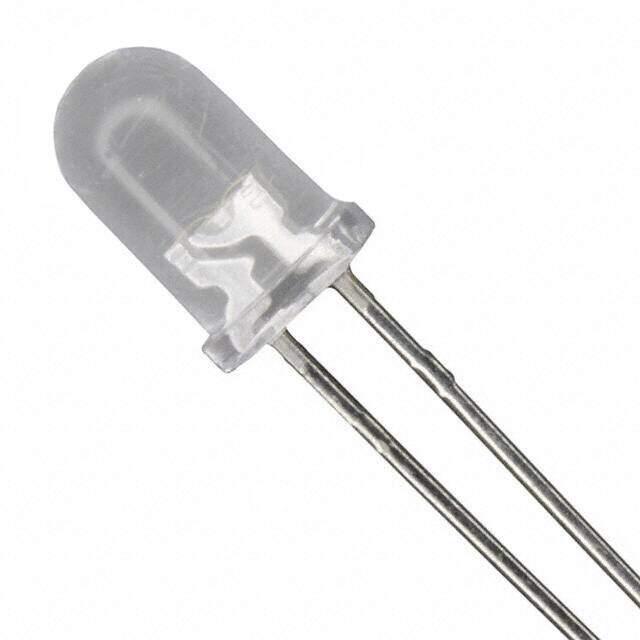

C503D-WAN-CBBDB151 image
Favorite
C503D-WAN-CBBDB151 image
Favorite

C503D-WAN-CBBDB151

Cree Inc.
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED COOL WHITE CLEAR 5MM RND T/H
PDF
/
Inventory: 1657
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2

Technical

Packaging Bulk
Series C503D-WAN
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Max Operating Temperature 95°C
Min Operating Temperature -40°C
Color White, Cool
Number of Functions 1
Depth 5.9mm
Base Part Number C503D
Number of Elements 1
Configuration Standard
Power Dissipation 120mW
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 15°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Luminous Intensity 30 cd
Millicandela Rating 33125mcd
Illumination Color White
Lens Transparency Clear
Lens Color Colorless
Reverse Voltage 5V
Wavelength - Dominant 9000K

Dimensions

Height 8.6mm
Length 5.9mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
