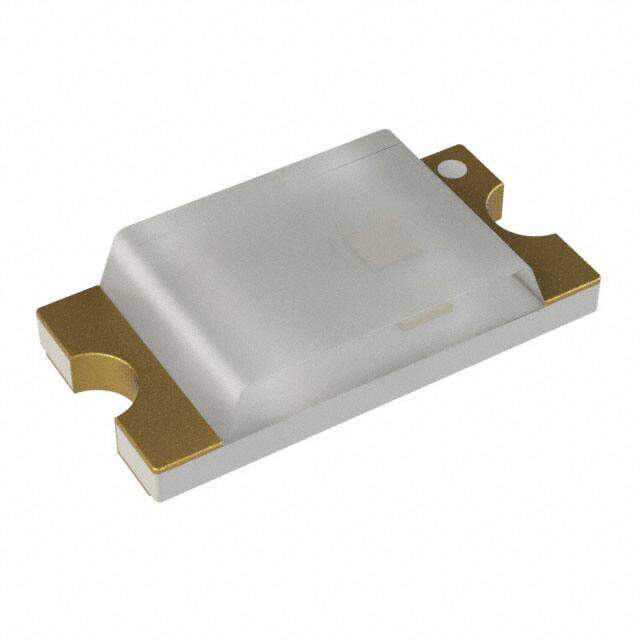

HSMR-C130
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD InGaN Blue
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.42416
≥100 USD $0.277816
≥500 USD $0.2574
Inventory: 7636
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 1.60mm Lx0.80mm W
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Blue
Additional Feature SUPPORTS INFRARED
Subcategory Visible LEDs
Power Rating 78mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Base Part Number HSMR-C130
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 145°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.15mmx0.80mm
Luminous Intensity 55 mcd
Millicandela Rating 55mcd
Lens Transparency Diffused
Wavelength - Peak 469nm
Lens Color White
Forward Voltage-Max 3.9V
Wavelength - Dominant 473nm
Number of LEDs 1
Reverse Voltage-Max 5V
Dimensions
Height 350μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
