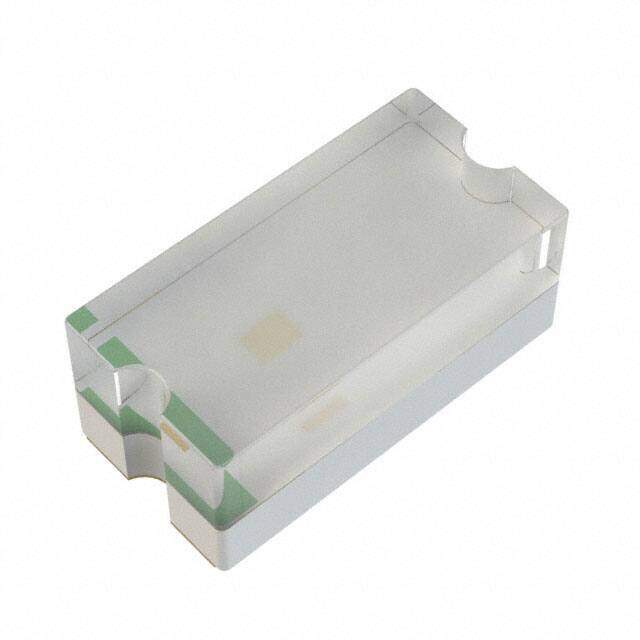

HSMQ-C280
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMQ-C280 LED, Green, SMD, 20 mA, 3.9 V, 522 nm
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.572
≥100 USD $0.42328
≥500 USD $0.388925
≥1000 USD $0.320285
≥3000 USD $0.304278
Inventory: 1319
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 0.50mm
Width 500μm
Length 1mm
Height 500μm
Technical
Number of LEDs 1
Wavelength - Dominant 522nm
Wavelength 522 nm
Lens Color White
Wavelength - Peak 516nm
Lens Transparency Diffused
Millicandela Rating 223mcd
Luminous Intensity 222.8 mcd
Forward Voltage 3.9V
Lens Size 1.00mmx0.50mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Forward Current 20mA
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Color Green
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 1.00mm Lx0.50mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Supplier Device Package SMD
Number of Pins 2
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
