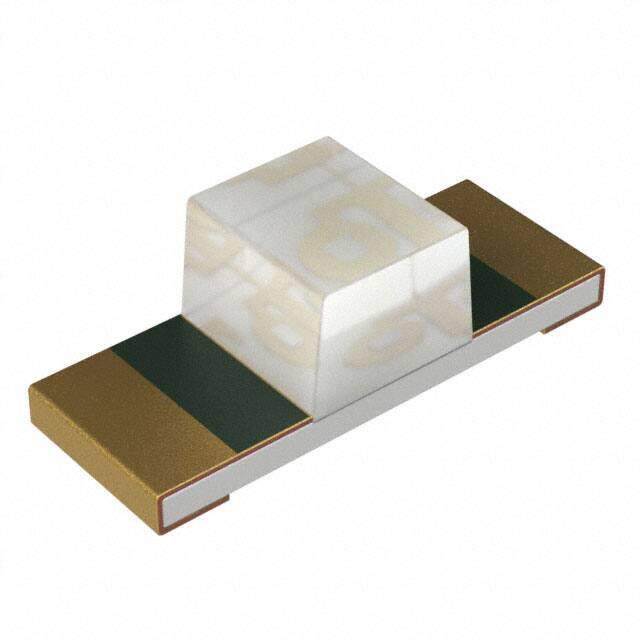

HSMQ-C265
RoHS
RoHS compliant
RoHS compliantPackage 1305 (3412 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD InGaN Green
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.6512
≥100 USD $0.4818
≥500 USD $0.44271
≥1000 USD $0.364584
Inventory: 1575
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 1.1mm
Technical
Wavelength - Dominant 527nm
Forward Voltage-Max 3.9V
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 520nm
Lens Transparency Clear
Millicandela Rating 140mcd
Luminous Intensity 140 mcd
Lens Size 1.25mmx1.20mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 150°
Voltage - Forward (Vf) (Typ) 3.4V
Power Dissipation 78mW
Configuration Standard
Number of Elements 1
Base Part Number HSMQ-C265
Depth 1.25mm
Terminal Pitch 3.7mm
Number of Functions 1
Orientation Top View
Packing Method TAPE AND REEL 7"
Subcategory Visible LEDs
Additional Feature SUPPORTS INFRARED
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 3.40mm Lx1.25mm W
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 1305 (3412 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
