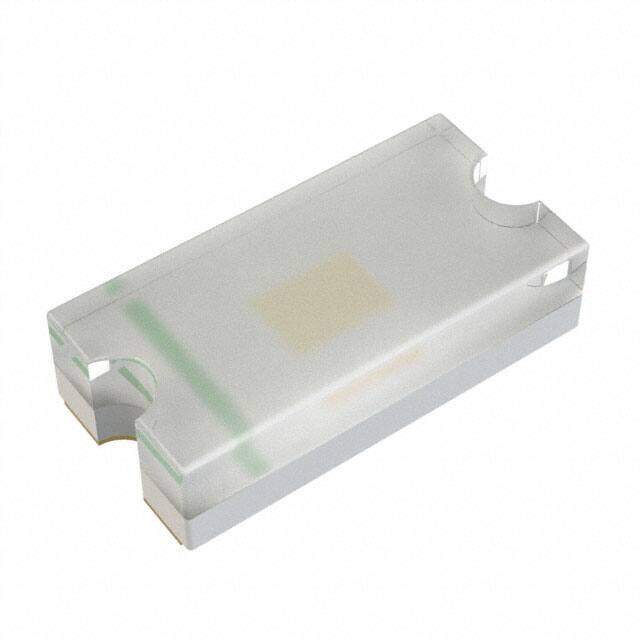

HSMQ-C197
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color Green 520nm 2-Pin T/R
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.65032
≥100 USD $0.48092
≥500 USD $0.441954
≥1000 USD $0.363968
≥3000 USD $0.34577
Inventory: 81
Minimum: 1
-
+
Technical Details
Dimensions
Height 400μm
Technical
Wavelength - Dominant 527nm
Forward Voltage-Max 3.9V
Reverse Voltage 5V
Lens Color White
Wavelength - Peak 520nm
Lens Transparency Diffused
Millicandela Rating 145mcd
Luminous Intensity 145 mcd
Lens Size 1.60mmx0.80mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 3.4V
Power Dissipation 78mW
Configuration Standard
Number of Elements 1
Base Part Number HSMQ-C197
Depth 800μm
Number of Functions 1
Max Power Dissipation 78mW
Packing Method TAPE AND REEL 7"
Subcategory Visible LEDs
Additional Feature SUPPORTS INFRARED
Color Green
Min Operating Temperature -30°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 1.60mm Lx0.80mm W
Published 2016
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
