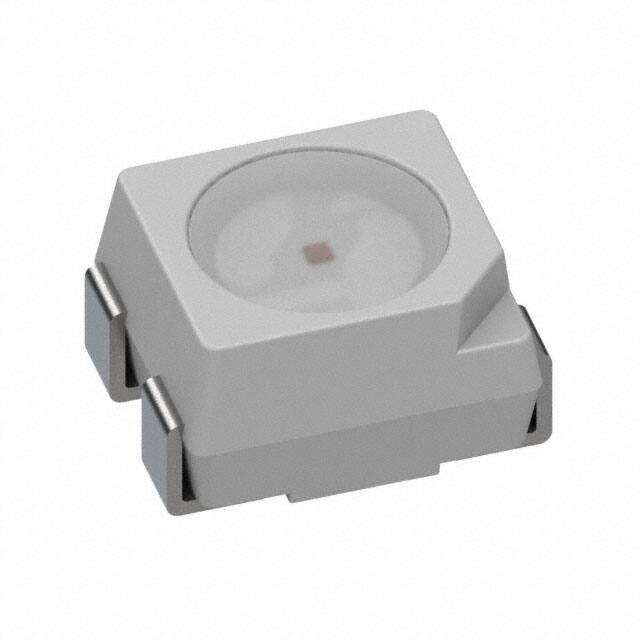

HSMN-A400-S8PM2
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMN-A400-S8PM2 LED, Blue, SMD, 30 mA, 3.8 V, 470 nm
PDF
/
Inventory: 3384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 2.1mm
Technical
Reverse Voltage-Max 5V
Number of LEDs 1
Wavelength - Dominant 470nm
Luminous Flux 450 mlm
Lens Color Colorless
Wavelength - Peak 468nm
Lens Transparency Clear
Millicandela Rating 392mcd
Luminous Intensity 560 mcd
Lens Size 2.20mm Dia
Lens Style Round with Flat Top
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.8V
Configuration Standard
Base Part Number HSMN-A400
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 114mW
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY, SUPPORTS INFRA RED
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Last Time Buy
JESD-609 Code e3
Size / Dimension 3.20mm Lx2.80mm W
Published 2009
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
