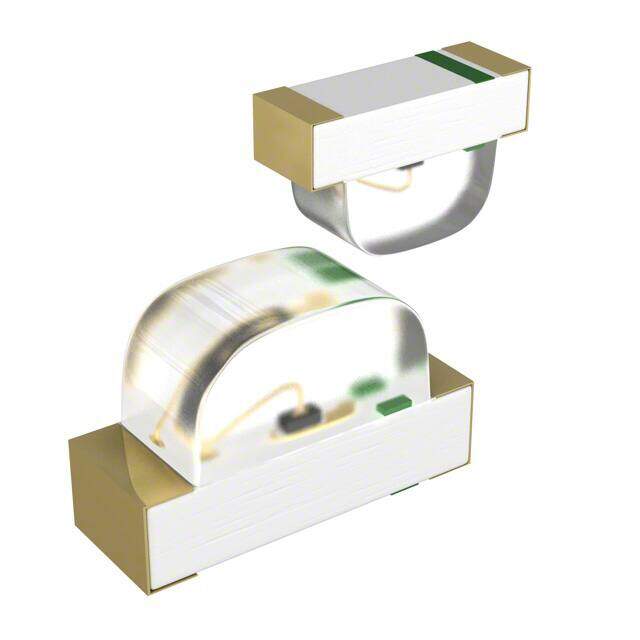

HSMM-C120
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color Green 523nm 2-Pin Chip LED T/R
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.1528
≥1 USD $1.1528
≥10 USD $0.72776
≥100 USD $0.538648
≥500 USD $0.494982
≥1000 USD $0.407642
≥3000 USD $0.387262
Inventory: 65
Minimum: 1
-
+
Technical Details
Technical
Lens Transparency Clear
Wavelength - Peak 523nm
Lens Color Colorless
Luminous Flux 490 lm
Reverse Voltage 5V
Forward Voltage-Max 3.9V
Wavelength - Dominant 525nm
Luminous Intensity 120 mcd
Lens Size 1.20mmx0.60mm
Lens Style Rectangle with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 155°
Voltage - Forward (Vf) (Typ) 3.4V
Power Dissipation 78mW
Configuration Standard
Number of Elements 1
Base Part Number HSMM-C120
Depth 600μm
Number of Functions 1
Packing Method TR, 7 INCH
Power Rating 78mW
Subcategory Visible LEDs
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 1.60mm Lx1.00mm W
Published 2008
Packaging Tape & Reel (TR)
Dimensions
Height 600μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
