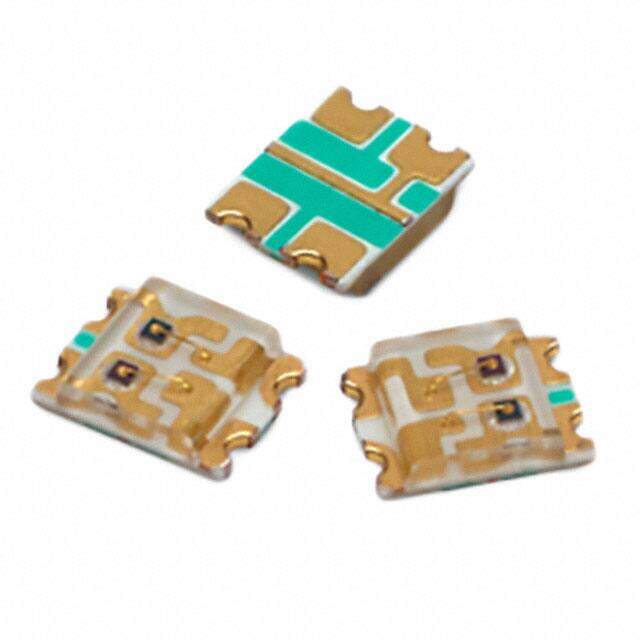

HSML-C170
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD AlInGaP Orange Org
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.33264
≥100 USD $0.191312
≥500 USD $0.149741
≥1000 USD $0.137271
Inventory: 10843
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 800μm
Technical
Wavelength - Dominant 605nm
Reverse Voltage 5V
Luminous Flux 370 lm
Lens Color White
Wavelength - Peak 609nm
Lens Transparency Diffused
Luminous Intensity 90 mcd
Lens Size 1.40mmx1.25mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Forward Current 25mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 170°
Power Dissipation 60mW
Configuration Standard
Number of Elements 1
Case Code (Imperial) 0805
Case Code (Metric) 2012
Base Part Number HSML-C170
Depth 1.25mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Voltage - Rated DC 1.9V
Power Rating 60mW
Subcategory Visible LEDs
Additional Feature SUPPORTS INFRARED
Color Orange
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 2.00mm Lx1.25mm W
Published 2010
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
