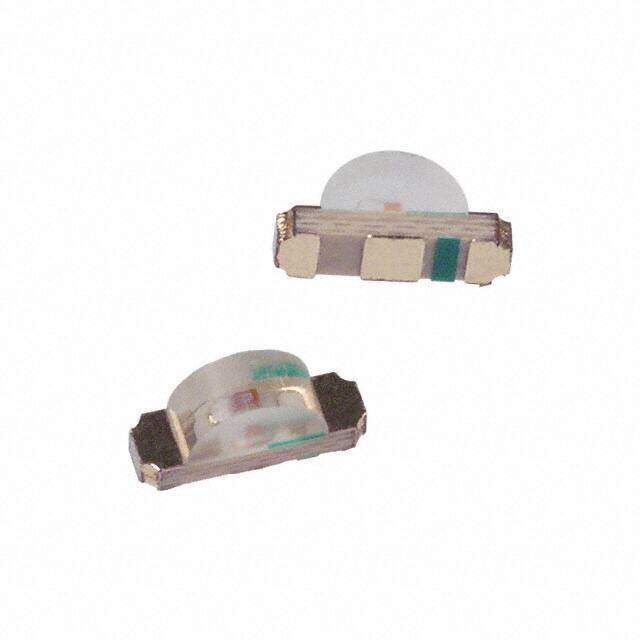

HSML-C110
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD AlInGaP Orange GaP Org
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.30448
≥100 USD $0.201256
≥500 USD $0.155364
Inventory: 9656
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 1mm
Technical
Wavelength - Dominant 605nm
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 609nm
Lens Transparency Clear
Millicandela Rating 95mcd
Luminous Intensity 95 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 1.9V
Power Dissipation 60mW
Configuration Standard
Number of Elements 1
Base Part Number HSML-C110
Depth 1mm
Terminal Pitch 3.5mm
Number of Functions 1
Max Power Dissipation 60mW
Packing Method TAPE AND REEL 7"
Power Rating 60mW
Subcategory Visible LEDs
Additional Feature SIDE VIEW, SUPPORTS INFRARED
Color Orange
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 3
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 3.20mm Lx1.50mm W
Published 2010
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
