HSMF-C167
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED, SMD, BICOLOUR, GRN/ONG
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.35816
≥100 USD $0.236984
≥500 USD $0.182978
≥1000 USD $0.165343
Inventory: 24805
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 500μm
Technical
Wavelength - Dominant 572nm Green 604nm Orange
Reverse Voltage 5V
Lens Color White
Wavelength - Peak 570nm Green 605nm Orange
Lens Transparency Diffused
Illumination Color Green, Orange
Millicandela Rating 15mcd Green, 8mcd Orange
Luminous Intensity 8 mcd
Lens Size 1.60mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Orange
Forward Current 20mA
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.2V Green 2.2V Orange
Power Dissipation 52mW
Configuration Independent
Number of Elements 2
Case Code (Imperial) 0603
Case Code (Metric) 1608
Base Part Number HSMF-C16
Depth 800μm
Terminal Pitch 1.3mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 52mW
Subcategory Visible LEDs
Color Green, Orange
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 1.60mm Lx0.80mm W
Published 2002
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 4
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks

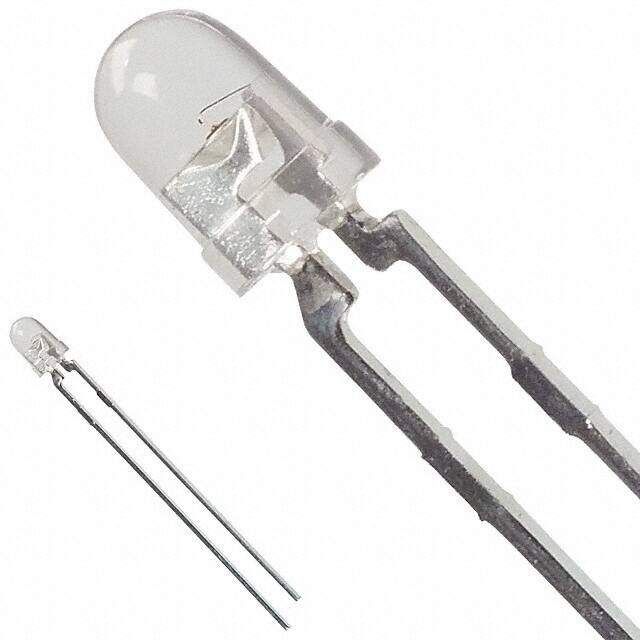

Alternative Model
