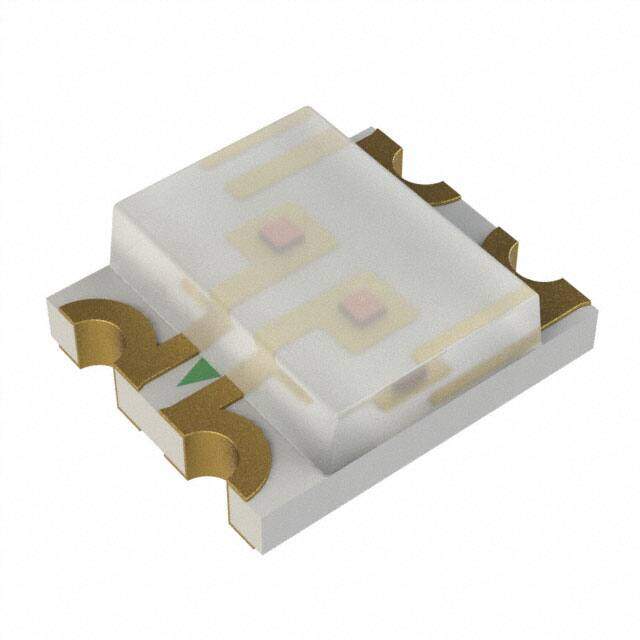

HSMF-C150
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMF-C150 LED, Red, Green, SMD, 170 , Rectangular, R 20mA, G 20mA
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.572
≥100 USD $0.42328
≥500 USD $0.388925
≥1000 USD $0.320285
Inventory: 1368
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Number of Pins 4
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 3.20mm Lx2.70mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 4
Color Green, Red
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 3.5mm
Operating Temperature (Max) 85°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Green 2V Red
Viewing Angle 170°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 2.06mmx2.70mm
Luminous Intensity 79 mcd
Millicandela Rating 45mcd Green, 79mcd Red
Lens Transparency Diffused
Wavelength - Peak 570nm Green 644nm Red
Lens Color White
Wavelength - Dominant 572nm Green 632nm Red
Number of LEDs 2
Dimensions
Height 1.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
