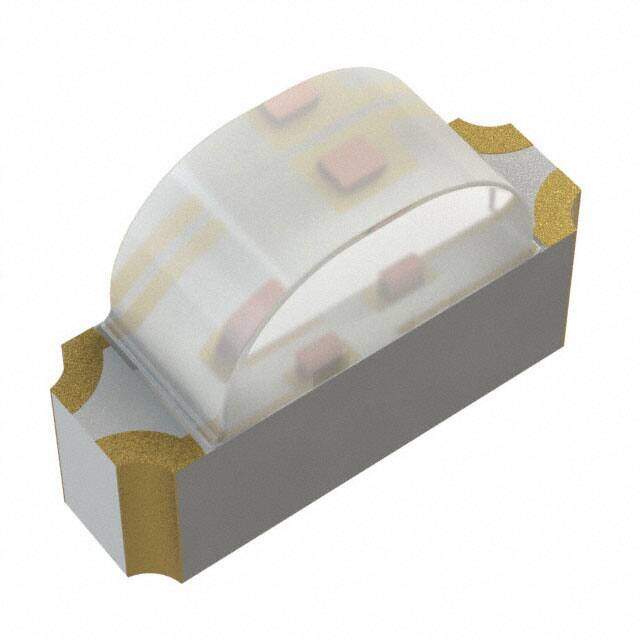

HSMF-C146
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMF-C146 LED, Red, Blue, SMD, 110 , Dome, R 20mA, B 20mA
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $0.98824
≥100 USD $0.731016
≥500 USD $0.671774
≥1000 USD $0.553221
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD
Number of Pins 4
Supplier Device Package SMD
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 3.00mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Color Blue, Red
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 3.4V Blue 2.3V Red
Viewing Angle 120°
Current - Test 20mA Blue 20mA Red
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Forward Voltage 2V
Luminous Intensity 79 mcd
Millicandela Rating 75mcd Blue, 79mcd Red
Lens Transparency Clear
Wavelength - Peak 459nm Blue 644nm Red
Lens Color Colorless
Wavelength - Dominant 464nm Blue 632nm Red
Number of LEDs 2
Dimensions
Height 1.1mm
Length 3mm
Width 2mm
Height (Max) 1.10mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
