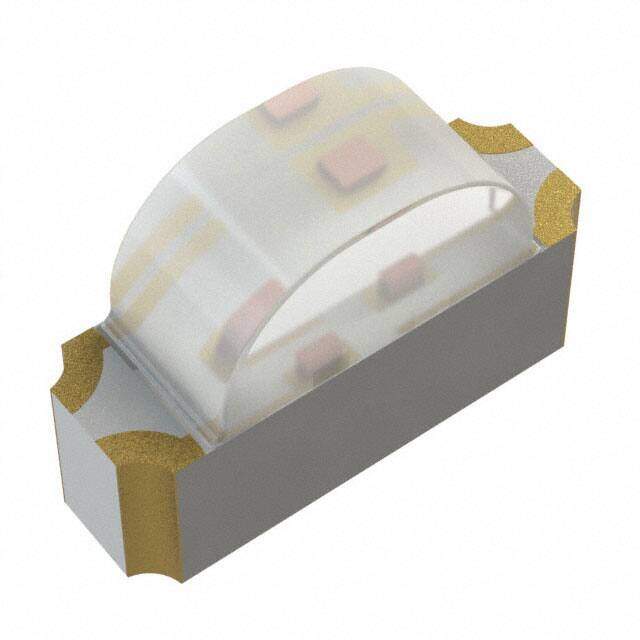

HSMF-C145
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMF-C145 LED, Red, Green, SMD, 120 , Dome, R 20mA, G 20mA
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $0.98824
≥100 USD $0.731016
≥500 USD $0.671774
≥1000 USD $0.553221
Inventory: 1467
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD
Number of Pins 4
Supplier Device Package SMD
Technical
Packaging Tape & Reel (TR)
Published 2013
Size / Dimension 3.00mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Color Green, Red
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 3.4V Green 2V Red
Viewing Angle 120°
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Domed Top
Number of LEDs 2
Wavelength - Dominant 523nm Green 632nm Red
Lens Color Colorless
Wavelength - Peak 517nm Green 644nm Red
Lens Transparency Clear
Millicandela Rating 223mcd Green, 79mcd Red
Luminous Intensity 79 mcd
Forward Voltage 2V
Lens Size 2.00mmx1.00mm
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 1.10mm
Width 2mm
Length 3mm
Height 1.1mm
