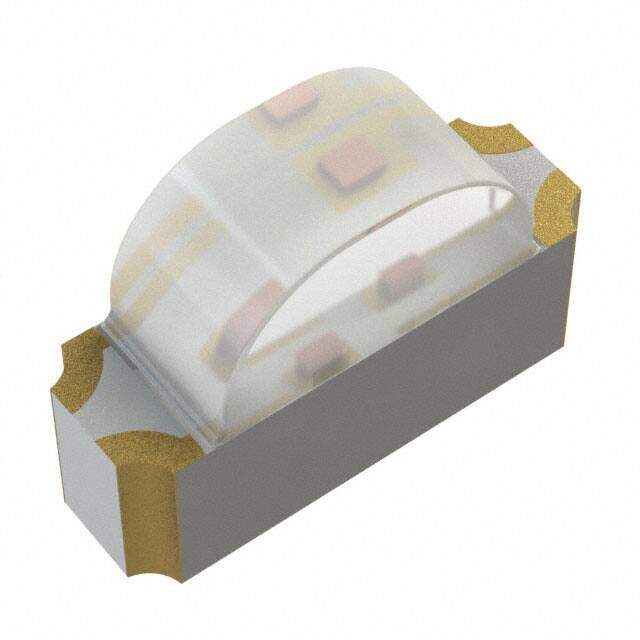

HSMF-C144
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMF-C144 LED, Red, Green, SMD, 120 , Dome, R 20mA, G 20mA
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.43824
≥100 USD $0.324544
≥500 USD $0.30888
Inventory: 1246
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 1.10mm
Width 2mm
Length 3mm
Height 1.1mm
Technical
Number of LEDs 2
Wavelength - Dominant 570nm Green 632nm Red
Lens Color Colorless
Wavelength - Peak 571nm Green 644nm Red
Lens Transparency Clear
Millicandela Rating 33mcd Green, 79mcd Red
Luminous Intensity 79 mcd
Forward Voltage 2V
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA Green 20mA Red
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V Green 2V Red
Configuration Common Anode
Color Green, Red
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 3.00mm Lx2.00mm W
Published 2013
Packaging Tape & Reel (TR)
Physical
Supplier Device Package SMD
Number of Pins 4
Package / Case 4-SMD
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
